Commercial Panic Exit & Architectural Door Assemblies
Engineered to international life-safety codes (UL 305, EN 1125, AS2047, and NFRC). Explore our precision-fabricated emergency doors and commercial entrance systems.

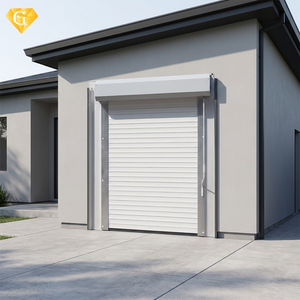

Aluminum Security OEM Fire Prevention Door & Roller System
Heavy-duty aluminum alloy frame with integrated windproof sealing, fire prevention barrier, and rapid panic breakout options for school yards and commercial perimeter access.
Inquire Now

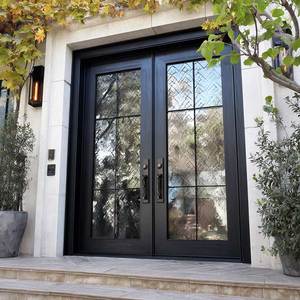

Commercial Luxury Security Frosted Glass Entry Double Doors
Architectural grade steel and iron reinforcement paired with UL-compliant vertical rod panic hardware. Combines grand aesthetics with fast emergency evacuation egress capability.
Inquire Now

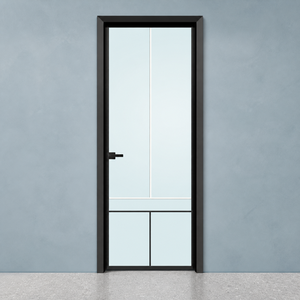

Energy Saving Thermal Break Hinged Exit Door (CE & AS2047)
High-performance thermal barrier profiles fitted with rim panic push bars. Engineered for extreme sound insulation, energy conservation, and weather-tight sealing.
Inquire Now
Modern Thermal Insulation & Fire Prevention Heavy-Duty Pivot Door
Oversized luxury entrance pivot design featuring intumescent fire core seals, reinforced pivot hinges, and concealed electromagnetic emergency release integration.
Inquire Now

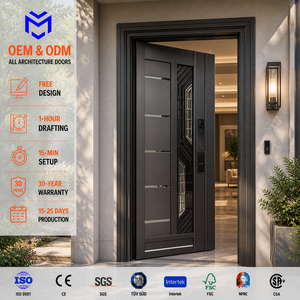

Custom 304 Stainless Steel Security Door with Electrified Panic Lock
Marine-grade 304 stainless steel construction offering anti-burglary protection and automated access control override for high-security commercial facilities.
Inquire Now

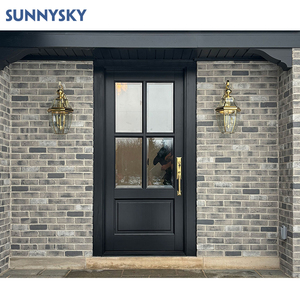

American Architectural Entrance Pivot System with Panic Touch Bar
Precision-engineered extruded aluminum profile system designed for large commercial openings, combining sleek aesthetic framing with high-frequency exit hardware.
Inquire Now
Armored Bulletproof & Fire-Rated Security Egress Door Assembly
Multi-layered ballistic core doors configured with certified UL panic hardware, offering maximum threat protection without sacrificing instantaneous emergency egress capability.
Inquire Now
Commercial Security Steel Single Egress Gate Door System
Galvanized anti-corrosion steel single door leaf fitted with heavy-duty Grade 1 panic rim device, ideal for utility corridors, fire stairwells, and service entrances.
Inquire NowArchitectural Life-Safety & Panic Exit Hardware Door Systems: Engineering, Testing Standards, and Supply Chain Metallurgy
Modern commercial architecture demands an unyielding balance between physical building security, energy efficiency, structural longevity, and absolute life-safety compliance. As high-occupancy structures such as educational institutions, healthcare complexes, sports stadiums, commercial towers, and industrial logistics hubs expand worldwide, panic exit doors (frequently specified as emergency egress doors) stand as the paramount architectural safeguard against catastrophic events during fires, seismic alerts, or security lockdowns.
As China’s premier OEM and ODM manufacturer of certified panic hardware door systems, Foshan Aluvoy Entry Door Systems Co., Ltd. delivers deeply integrated architectural solutions. Our engineering framework bridges high-strength metal metallurgy, advanced thermal break insulation, precision hardware mechanics, and rigorous third-party fire testing. This technical whitepaper explores the fundamental engineering principles, regulatory compliance matrices, and procurement paradigms essential for global project specifiers, commercial contractors, and hardware importers.
E-E-A-T Information Gain Insights: Unlike basic commercial doors, certified panic exit assemblies require holistic system testing where frame structural deflection, door core integrity, intumescent sealant expansion, and hardware latch retraction mechanisms perform under extreme thermal stress (up to 1,000°C during UL 10C positive pressure fire testing) and physical force (over 250 lbs of panic push bar pressure).
1. Regulatory Compliance Frameworks: UL 305 vs. EN 1125 & EN 179 Mechanics
When specifying panic hardware door assemblies for international jurisdictions, understanding the core mechanical and operational differences between North American (ANSI/BHMA & UL) standards and European (EN/CE) directives is critical to avoiding jobsite rejection and municipal code non-compliance.
UL 305 & BHMA A156.3 Grade 1
Requires panic exit hardware to unlatch with less than 15 lbs of force applied to the actuating bar. Undergoes 1,000,000 continuous cycle endurance testing to guarantee lifetime operational reliability under high-frequency public usage.
BS EN 1125 (Panic Exit Devices)
Mandated for public areas where occupants have no prior knowledge of emergency exit layouts. Specifies full-width horizontal push-bars or touch-bars, ensuring immediate release even when panic pressure is exerted anywhere along the bar axis.
BS EN 179 (Emergency Devices)
Intended for non-public buildings (such as corporate offices and manufacturing plant rooms) where personnel are familiar with emergency evacuation routes. Lever handles or push-pads are permissible under strict release force thresholds.
At Aluvoy, every commercial door frame and leaf is pre-machined using high-precision CNC machinery to accommodate rim panic devices, surface vertical rods, concealed vertical rods (CVR), or heavy-duty mortise exit locks. Factory pre-machining eliminates structural distortion during installation, maintaining the strict tolerance windows required for fire-rated latching mechanisms.
2. Material Metallurgy, Fire Core Dynamics & Thermal Break Engineering
The structural integrity of a panic door under emergency distress relies upon advanced composite material selection. A structural breakdown of Aluvoy's manufacturing engineering reveals multi-tiered protection layers:
- Extruded Aluminum Alloy Profiles (6063-T6): Utilized for high-end exterior entrance doors, store fronts, and thermal-break panic doors. Tensile strength exceeds 205 MPa, treated with fluorocarbon (PVDF) powder coating for coastal corrosion resistance surpassing 3,000 hours of salt spray exposure.
- Galvanized & Stainless Steel Cores (304 / 316 Grade): For heavy industrial and fire-stairwell applications, door leaves are fabricated using 1.5mm to 2.0mm thick zinc-coated steel or SUS304 stainless sheets reinforced with internal steel stiffeners spaced at 150mm intervals.
- Intumescent Fire Seal Integration: Under elevated ambient heat (180°C+), our graphite-based intumescent seals expand to 25 times their initial volume, filling gaps between frame and leaf to prevent toxic smoke migration and flame breakthrough (rated up to 3 hours under UL 10C and EN 1634-1).
- Thermal Break Polyamide (PA66 GF25) Insulation: Structurally bonded multi-chamber polyamide strips separate interior and exterior aluminum profiles, achieving U-values down to 1.4 W/m²K while eliminating condensation buildup in severe climates.
| Performance Standard | Standard Commercial Door | Aluvoy UL 305 Panic Exit Door | Heavy-Duty Fire & Impact Egress System |
|---|---|---|---|
| Fire Resistance Rating | Non-Rated / 20 Mins | 60 / 90 / 120 Minutes (UL 10C) | Up to 180 Minutes (UL 10C / BS 476) |
| Hardware Testing Cycles | 250,000 Cycles | 1,000,000+ Cycles (Grade 1) | 1,500,000+ Cycles (Grade 1 Heavy Duty) |
| Structural Wind Load (DP) | DP 30 (140 mph) | DP 50 - DP 70 (180+ mph) | DP 100+ (Florida Hurricane Impact Approved) |
| Thermal U-Value (W/m²K) | 3.5 - 4.2 | 1.8 - 2.2 | 1.2 - 1.5 (Triple Glazed SGP Laminated) |
| Acoustic Rating (STC) | STC 28 - 32 | STC 38 - 42 | STC 45+ (Acoustic Core & Drop Seals) |
3. Strategic Procurement Trends in Panic Hardware & Commercial Doors (2026–2032)
The global commercial architectural door industry is undergoing a massive transformation driven by smart access control integration, net-zero building regulations, and supply chain resilience demands. Key macro procurement trends include:
Electrified Panic Locks & Smart Access Integration
Migration from mechanical-only push bars to electrified latch retraction (ELR) hardware. Allows seamless integration with biometric access, fire alarm automatic drop-out, and centralized BMS building management systems.
Severe Weather & Hurricane Impact Hybrid Systems
Rising global extreme weather patterns require egress doors in coastal zones to satisfy dual credentials: UL 305 instant egress release combined with TAS 201/202/203 large-missile impact resistance and zero air infiltration.
Prefabricated Modular Door Sets (Kits)
Global contractors increasingly source complete pre-hung unitized door packages—including frame, sash, factory-installed panic hardware, weatherstripping, and glass—reducing site labor costs by up to 60%.
Foshan Aluvoy Factory Credentials & OEM Superiority
Direct factory manufacturing backed by two decades of export experience, world-class testing labs, and strict quality control.
SAI Global AS2047 Certified
Certified for structural deflections, air infiltration, and high water-head resistance for Australian and New Zealand commercial construction standards.
NFRC & North America Approved
Verified Thermal U-Factor, Solar Heat Gain Coefficient (SHGC), and Visible Transmittance ratings compliant with IECC code compliance across the US and Canada.
Florida Hurricane Product Approval
Rigorous impact-resistant product approvals verified for High-Velocity Hurricane Zones (HVHZ), engineered to withstand wind pressures up to ±100 PSF.
In-House QC & Testing Lab
Every batch undergoes mechanical pull-out checks, corner weld strength tests, cycles of opening-closing fatigue, and water sealant penetration verification prior to packing.
Full OEM Shop Drawings Support
Our experienced engineering team converts CAD/BIM architectural drawings into precise fabrication shop drawings for customer approval prior to mass cutting.
10-Year Comprehensive Warranty
We stand behind our metal door profiles, glass units, and hardware mechanisms with a 10-year warranty, providing long-term peace of mind for commercial projects.
Frequently Asked Procurement & Technical Questions (FAQ)
Essential guidance for commercial builders, architects, hardware distributors, and procurement managers sourcing from China.
Ready to Source High-Performance Panic Hardware Doors Directly from the Factory?
Submit your architectural schedule, CAD drawings, or tender specification. Our technical engineering team will deliver a comprehensive project quotation within 24 hours.
