Custom Aluminum French Doors & Hinged Swing Door Systems
Engineered specifically for North American, Australian, and European luxury residential and commercial projects. Built to exact project drawings with thermal break profiles, multi-point lock systems, and hurricane impact options.
Engineering & Performance Highlights
| Manufacturer | Foshan Aluvoy Entry Door Systems Co., Ltd. |
| Opening Configurations | Single Swing / Double French / Inswing & Outswing / Sidelite & Transom Combo |
| Thermal Insulation | U-Factor ≤ 1.8 W/m²K (Thermally Broken Profile) |
| Acoustic Rating | Sound Insulation up to STC 45 dB |
| Air Tightness | ≤ 0.4 m³/(m²·h) Compression Sealing |
| Wind Pressure Load | ≥ 2.8 KPa (CW-PG60 & Impact Rated) |
| Water Penetration | ≥ 900 Pa (High-Threshold Weatherization) |
| Certifications | AS2047 (SAI Global), NFRC, Florida Product Approval |
| Warranty | 10-Year Comprehensive Factory Warranty |
Architectural Options & Material Standards
Every aluminum French door unit is tailored to your structural requirements, climate conditions, and aesthetic preferences.
Precision Structural Engineering Features
- Heavy-Duty Extrusion Profiles: High-grade T6063-T5 aluminum alloy for enhanced structural rigidity and durability under high wind loads.
- Polyamide Thermal Insulation Strip: Reinforced glass fiber nylon thermal break strips reduce heat transfer and enhance interior comfort.
- Co-Extruded EPDM Weather Seals: Continuous multi-layer EPDM foam seals resist aging, severe rainfall penetration, and air infiltration.
- Corner Locking Keys: Mechanical corner cleats ensure perfectly flush frame joints, structural integrity, and long-term stability.
- Flush Threshold Options: Available with low-profile sills compliant with ADA barrier-free access standards or high-performance weather-drained thresholds.
Surface Treatment & Color Customization
Foshan Aluvoy Entry Door Systems Co., Ltd. uses world-class powder coatings (AkzoNobel & Interpon) certified for harsh coastal environments and UV exposure.
- Standard Architectural Colors: Frosted Black, Architectural Pearl White, Satin Clear Anodized, Commercial Bronze.
- Interpon & Colorbond Colors: Woodland Grey, Ironstone, Shale Grey, Surfmist, Surf Blue, Monument Matt.
- Wood Grain Finishes: Heat-transfer timber finishes including Australian Cedar, Honey Gum, Mahogany, and Walnut.
- Dual Color Options: Specify separate interior and exterior finishes to complement indoor decor and exterior facade themes.

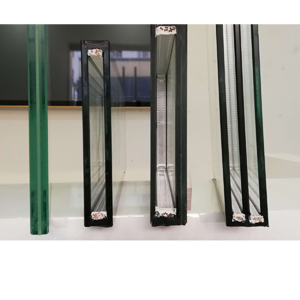

Insulated, Laminated & Impact Glazing
- Double Toughened IGU: 5mm / 6mm + 12A / 16A Air/Argon + 5mm / 6mm toughened glass with Low-E coating.
- Hurricane Impact Glazing: Laminated safety glass with 0.76mm / 1.52mm SGP or PVB interlayers meeting Florida missile impact codes.
- Triple Glazing Units: Ultra-low U-factor configurations designed for severe cold or hot climates requiring superior thermal insulation.
- Decorative & Acoustic Options: Frosted privacy glass, tinted glass (Bronze/Grey), bullet-resistant glass, and acoustic acoustic-dampening laminated glass.

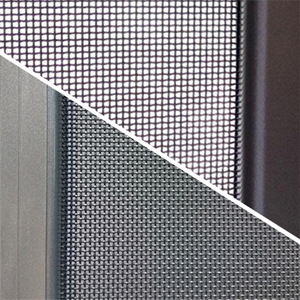

Integrated Insect & Security Screen Systems
- 304 / 316 Stainless Steel Mesh: High-tensile security mesh offering burglar resistance while allowing unobstructed airflow.
- High-Clarity Fiberglass Mesh: Standard durable mesh designed for effective protection against mosquitoes and insects.
- Retractable & Hinged Screen Doors: In-swing screen doors color-matched with the primary frame for cohesive visual aesthetics.

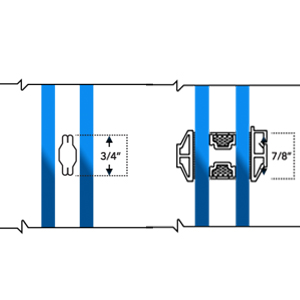

Muntins & Decorative Grille Options
- Internal GBG (Grilles Between Glass): Placed sealed inside the insulating glass unit for effortless glass cleaning.
- SDL (Simulated Divided Lites): Permanently bonded to interior and exterior glass faces with spacer bars for classic authentic aesthetics.
- Custom Geometric Layouts: Colonial, Prairie, Georgian, and custom architectural muntin layouts built to your elevation drawings.

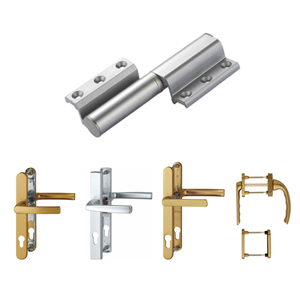

Global Standard Multi-Point Hardware
All hardware fittings undergo rigorous cycle testing (over 100,000 operations) to guarantee smooth operation and security.
- German Premium Hardware: SIEGENIA, ROTO, HOPPE multi-point locking systems providing maximum weather seal compression.
- Australian Standard Fittings: Australian Doric & Whitco heavy-duty hinges and keyed locking handles.
- North American Hardware: CMECH & Truth hardware systems with smart-lock integration compatibility.
Hinged French Door Configuration Options
Choose from versatile leaf configurations designed for patio openings, balconies, entrance halls, and commercial shopfronts.

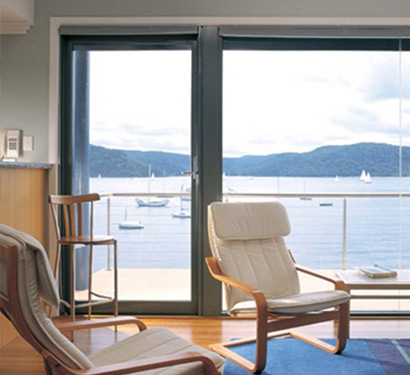

Single Panel Swing Door

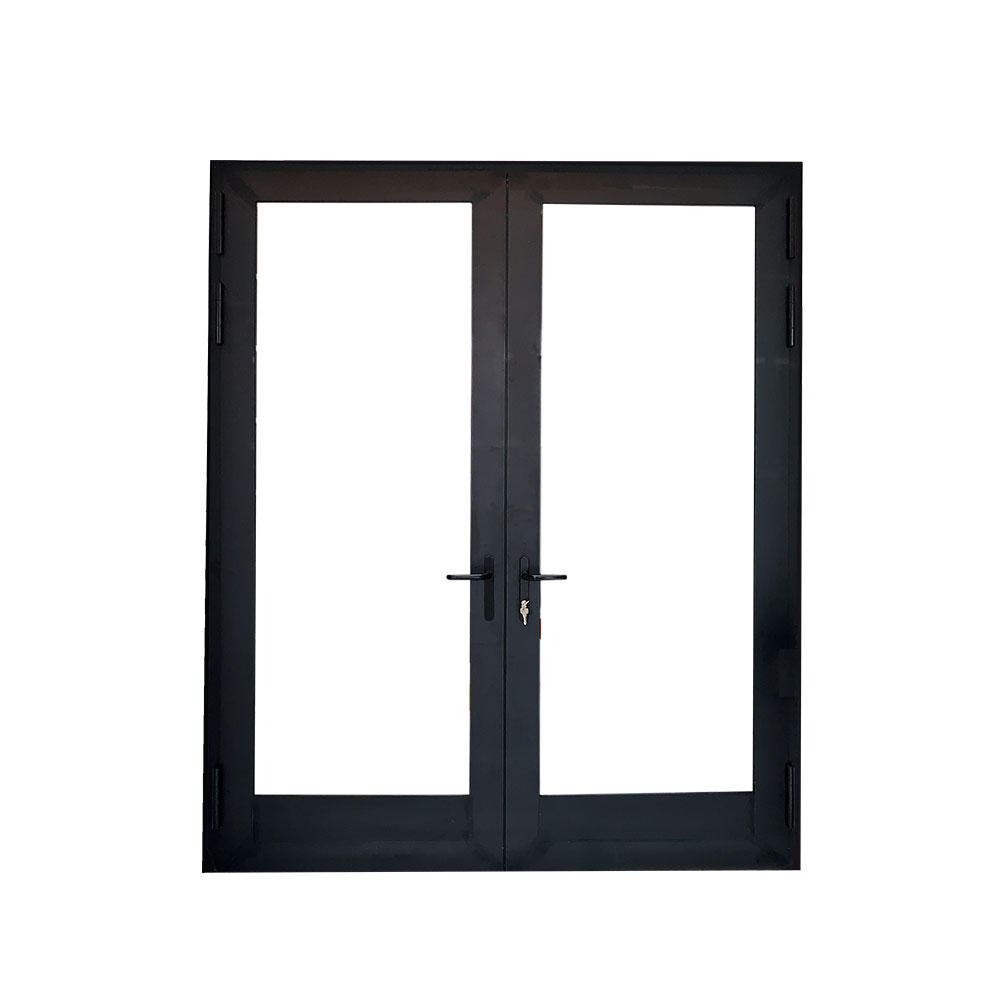

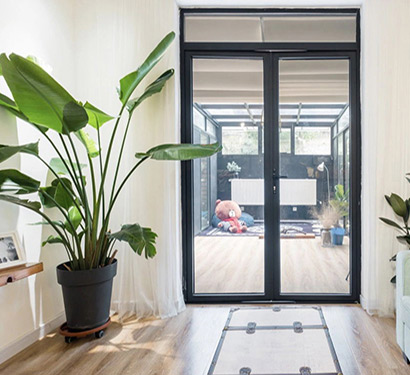

Double French Doors with Transom

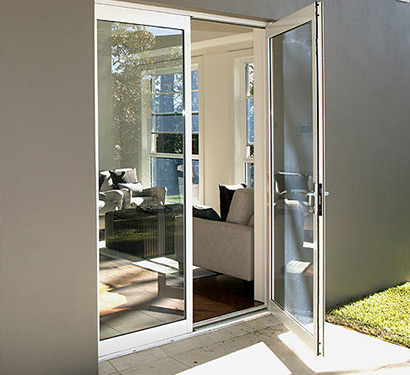

Double Inswing / Outswing Patio Doors

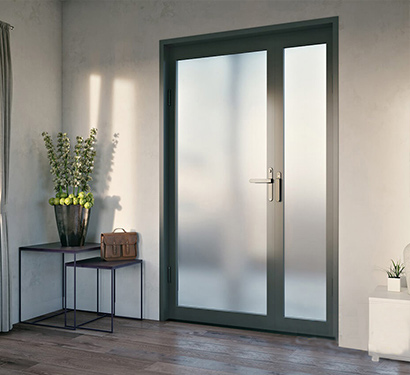

Unequal Double Entry Doors with Sidelites
Tested & Certified for Global Building Codes
Importing doors requires absolute compliance with local structural, energy, and safety codes. Foshan Aluvoy Entry Door Systems Co., Ltd. subjects every door profile series to independent laboratory verification before export.
- AS2047 & AS2208 (Australia): Verified through SAI Global & NATA-accredited labs in Sydney for water pressure, deflection, and air infiltration.
- NFRC & AAMA (North America): Energy performance rated for solar heat gain coefficient (SHGC) and U-Factor compliance.

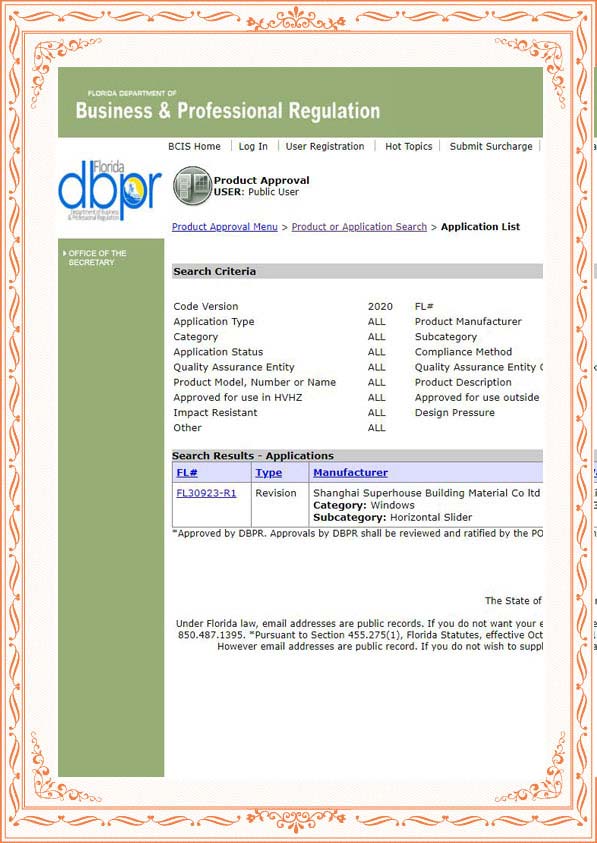

- Florida Product Approval: Engineered and tested under TAS 201/202/203 high-velocity hurricane zone (HVHZ) requirements.
Our engineering team delivers full shop drawings, structural calculation reports, and remote installation guidance to support contractors and developers at every phase.
Frequently Asked Questions About Aluminum French Doors
Key information for builders, architects, and dealers sourcing doors directly from Foshan Aluvoy Entry Door Systems Co., Ltd.
Why choose aluminum French doors over traditional wood or vinyl doors?
Aluminum French doors offer far greater structural strength, slimmer frames for maximized glass views, superior weather resistance, and immunity to warping, swelling, or rotting. Paired with thermal break technology, they deliver comparable or better energy insulation than wood or vinyl while requiring virtually zero maintenance.
Are your French door systems compliant with Australian (AS2047) and North American (NFRC/Florida) codes?
Yes. Our door systems are certified under AS2047 (SAI Global) for Australia, NFRC energy standards for the USA/Canada, and hold valid Florida Product Approvals for high-wind hurricane regions.
Can you manufacture aluminum French doors according to custom architectural drawings?
Absolutely. Every order at Foshan Aluvoy Entry Door Systems Co., Ltd. is custom fabricated according to your site opening schedule, CAD plans, glass specifications, and hardware selection. Our engineers issue detailed shop drawings for formal approval prior to cutting and assembly.
What lead time and container packing solutions do you offer?
Manufacturing typically takes 30 to 45 days after shop drawing approval. All door units are wrapped with protective film, edge protectors, and loaded onto customized iron/steel export pallets secured with airbags to ensure damage-free sea freight transit.
Request a Quotation & Technical Shop Drawings
Send your project schedule or CAD drawings to [email protected] for a fast engineering review and factory quotation.
