Engineering Structural Security: Modern Anti-Burglary Aluminum Doors
In modern commercial and high-end residential architecture, forced-entry resistance is no longer merely a mechanical bolt issue—it is an integrated structural engineering system. High-density 6063-T6 aluminum alloys combined with multi-chamber thermal breaks provide maximum shear resistance while maintaining superior acoustic and thermal envelopes.
💡 Industry Benchmark Insight: Modern burglar-resistant aluminum doors engineered with multi-point gearboxes, anti-drill manganese plates, and structural PVB/SGP laminated glass achieve security ratings compliant with EN 1627 RC2 through RC5 and PAS 24 standards, significantly outperforming legacy steel and wood doors in weatherability and structural longevity.
Recommended Burglar Resistant Aluminum Door Systems
Explore our engineered line of high-security aluminum doors manufactured to custom project specifications for commercial, retail, and luxury residential applications.

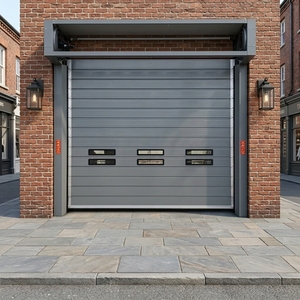

Heavy Duty Aluminum Spiral High Speed Door Windproof Anti-Theft Entrance
- High-speed spiral track mechanism
- Windproof slats up to Class 12
- Commercial retail & warehouse protection

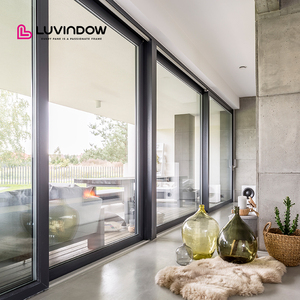

Hurricane Impact Thermal Break Exterior Patio Aluminium Sliding Door
- Florida HVHZ hurricane impact rated
- Argon filled Low-E double tempered glass
- Heavy-duty anti-lift interlock system

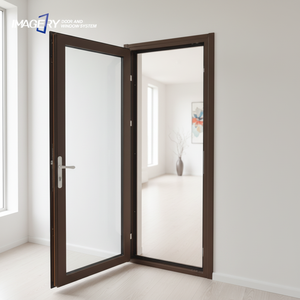

Thermal Break Aluminum Swing Door with Stainless Steel Security Mesh
- 304 high-tensile stainless steel mesh
- Double tempered acoustic insulation glass
- Multi-point locking thermal profile
Modern Luxury Clad Security Door Anti-Drill Anti-Pry Villa Entrance
- Manganese steel anti-drill protection plate
- Anti-pry 7-point motorized locking bolts
- Architectural luxury clad metal finish
External Bulletproof & Hurricane Impact Aluminum Security Pivot Door
- Heavy-duty pivot hinge supports up to 500kg
- UL 752 / EN 1063 bullet-resistant options
- Structural SGP laminated glass panel
Anti-Theft Armored Aluminum Entry Door with Thickened Steel Core
- Reinforced dual armor structure
- Hidden 3D adjustable security hinges
- Biometric smart lock integration ready

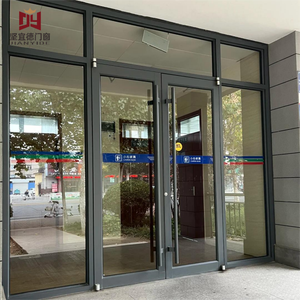

Commercial Windproof Double Glazed Shopfront Entrance Door
- High traffic commercial shopfront design
- Heavy duty concealed door closer
- Thermally broken soundproof glazing
OEM Fire-Prevention & Anti-Theft Aluminum Roller Shutter Security Door
- Double-walled extruded aluminum slats
- Automated anti-prying locking system
- Fire retardant & acoustic barrier core
Burglar Resistance Classification Standards (EN 1627 & ASTM F3038)
Understanding global security ratings ensures architects and builders select the precise structural frame thickness, internal manganese reinforcement, and locking mechanism required for project compliance.
| Security Class | Attack Resistance Profile | Test Tool Set & Method | Target Application | Aluminum Profile Spec |
|---|---|---|---|---|
| RC2 (EN 1627) | Resists opportunistic break-in attempts using basic physical force and simple hand tools. | Screwdrivers, pliers, wedge, hand saw (3 min manual attack). | Residential villas, upper floor office access. | 2.0mm extrusion, 3-point latch lock, 6mm tempered glass. |
| RC3 (EN 1627) | Resists targeted burglaries using heavy mechanical tools and prying forces. | Crowbar (750mm), steel pin punch, mechanical drill (5 min attack). | Ground floor luxury main entry, commercial retail storefronts. | 2.5mm 6063-T6 profile, 5-point lock, anti-drill manganese plate. |
| RC4 (EN 1627) | Resists experienced attackers using heavy-duty power tools and cutting gear. | Heavy hammer, chisel, cordless drill, jig saw, angle grinder (10 min attack). | High-value commercial vaults, jewelry stores, executive suites. | 3.0mm structural frame, 7-point motorized hook lock, SGP laminated glass. |
| ASTM F3038 | Standard test method for timed evaluation of forced-entry resistance for building enclosures. | Multi-person coordinated assault tool kit including sledgehammers and battering rams. | Government facilities, embassies, high-security infrastructure. | 3.5mm armored core aluminum profile with solid steel insert plates. |
Foshan Aluvoy Entry Door Systems Co., Ltd.
Founded in 2005, Foshan Aluvoy Entry Door Systems Co., Ltd. stands as a premier specialized manufacturer and direct exporter of architectural aluminum window and door systems. Operating from a state-of-the-art 20,000 m² industrial facility equipped with twin dedicated production lines and over 150 skilled engineers and technicians, Aluvoy delivers precision-crafted fenestration solutions to North America, Australia, and Europe.
Aluvoy was among the pioneering Chinese manufacturers to secure official AS2047 certification issued through SAI Global for the Australian market, along with authentic North American NFRC thermal rating certification and Florida Product Approval for high-velocity hurricane zones (HVHZ).
Future Sourcing & Technological Trends in Aluminum Security Doors
As global building codes mandate stricter energy efficiency alongside heightened security parameters, wholesale buyers and general contractors must align with emerging manufacturing innovations.
1. IoT Mechatronic & Biometric Integration
Traditional physical keys are rapidly giving way to motorized multi-point gearboxes tied directly to encrypted 3D facial recognition, biometric palm scanners, and smart home automation platforms (Tuya/Zigbee/Matter). Future-ready aluminum doors feature concealed wire transfer hinges and fail-secure battery backups.
2. PA66 GF25 Polyamide Thermal Break Engineering
To combat thermal bridging in modern glass facades, anti-theft aluminum doors incorporate 24mm to 34mm PA66 polyamide thermal barrier strips reinforced with 25% glass fiber. This enables U-values below 1.2 W/m²K without compromising the structural tensile strength needed for forced-entry defense.
3. Dual-Hazard Rating: Burglary + Hurricane Impact
Developers operating in coastal regions no longer procure separate impact and anti-theft systems. Modern extruded aluminum doors feature SentryGlas® (SGP) ionoplast interlayers between double tempered glass, achieving Florida HVHZ large missile impact compliance while simultaneously passing EN 1627 RC3 tool attacks.
Evolution of Burglar Resistant Aluminum Door Fabrication
From heavy iron bars to ultra-sleek architectural alloy profiles: How Chinese factories revolutionized structural security fenestration.
Over the past two decades, China's aluminum extrusion industry has undergone a technological metamorphosis. Early security entrance doors relied heavily on thick wrought iron grilles or hollow steel plates welded inside basic aluminum frames. While effective against raw physical force, these legacy designs suffered from severe corrosion, excessive weight, ugly aesthetic profiles, and zero thermal insulation performance.
Key Milestones in Profile & Hardware Evolution:
- Phase 1: High-Tensile Aluminum Alloys (AA6063-T6 & 6061-T6): Replacing soft recycled aluminum with primary virgin billet aluminum engineered with precise magnesium-silicon ratios, yielding ultimate tensile strengths exceeding 205 MPa.
- Phase 2: Multi-Chamber Extrusions & Corner Crimping: Transitioning to multi-cavity internal profile chambers with pneumatic corner key crimping and two-component epoxy adhesive injection, creating monolithic frame corner stability.
- Phase 3: Multi-Point Interlocking Systems: Replacing single latch deadbolts with multi-point drive gearboxes that throw 25mm hardened steel hook bolts and deadbolts into reinforced stainless steel strike plates at up to 7 contact points around the perimeter.
- Phase 4: Advanced Surface Treatments (Qualicoat Class 2 & PVDF): Implementing electrostatic fluorocarbon (PVDF) coating and 25-micron anodization to withstand 3,000-hour salt spray tests (ASTM B117) without bubbling or chalking.
Frequently Asked Questions for Wholesale Sourcing
Clear, technical answers to the most common questions raised by international distributors, developers, and trade buyers.
What international standards do your burglar-resistant aluminum doors hold?
Our aluminum door and window systems are certified under AS2047 by SAI Global for the Australian market, NFRC energy performance rating for North America, and Florida Product Approval for high-wind hurricane zones. Upon request, structural engineering calculations and test reports for EN 1627 RC2–RC4 resistance classes are provided.
Can you fabricate doors according to custom architectural CAD drawings and opening schedules?
Yes. 100% of our orders are fabricated to customer-specified opening dimensions, profile finishes, and glazing schedules. Our in-house engineering team issues detailed 2D/3D shop drawings for client sign-off prior to releasing aluminum extrusions to production.
How is quality controlled during in-house factory manufacturing?
Every step of production is handled internally at our 20,000 m² factory: precision CNC cutting, corner punching, hardware slot machining, automated structural silicone gluing, and final assembly. Every completed door undergoes a strict 100% pre-shipment inspection checking squareness tolerance (<1mm), latch engagement, seal compression, and surface finish scratch-free integrity.
What export packaging method is used to protect glass and aluminum finishes during ocean freight?
Doors are packaged using a 5-layer protective system: blue protective film over all aluminum surfaces, corner protector blocks, EPE foam wrapping, fully sealed fumigation-free plywood crates, and steel strapping. Containers are packed with air cushion bags to prevent shifting during maritime transit.
What warranty terms do you provide for wholesale project orders?
We back all aluminum profile systems and structural frame integrity with a 10-year factory warranty. Premium hardware systems (German GU, Siegenia, Hoppe, or Australian Doric) carry manufacturer warranties ranging from 5 to 10 years.
Do you offer technical installation guidance for overseas installers?
Yes. We supply comprehensive installation manuals, sub-frame anchoring diagrams, and step-by-step video tutorials. Our engineering department also provides remote video support during field installation for commercial projects.
Accelerate Your Sourcing with Factory-Direct Engineering Support
Submit your architectural drawings or project schedules today. Our export engineering team will review your specifications and issue a comprehensive commercial quote within 24 hours.
