Next-Generation Grand Pivot Door Engineering for Greater Toronto Real Estate
A comprehensive technical report on thermal breaks, structural wind-load mitigation, and direct factory OEM solutions for Toronto architects, custom builders, and luxury homeowners.
The contemporary architectural landscape of the Greater Toronto Area (GTA)—spanning luxury enclaves from The Bridle Path, Forest Hill, and Yorkville to Oakville and Mississauga waterfronts—has undergone a decisive shift. Standard double-hinged front doors are increasingly replaced by sweeping, large-format custom pivot entry systems. Moving sashes that exceed 5 feet in width and 10 to 14 feet in height create an unmistakable statement of modern luxury. However, manufacturing architectural pivot doors for Toronto’s severe continental microclimate presents extraordinary engineering challenges.
Unlike standard swing doors supported by perimeter butt hinges, custom pivot doors operate on an offset floor-mounted pivot spindle and top jamb pin. This offset transfers the door's immense gravity load (often between 300 kg and 800 kg) directly into the concrete subfloor, completely bypassing the structural door frame. While this mechanism allows sashes to glide effortlessly with fingertip force, it demands strict engineering around thermal bridging, air infiltration, perimeter compression sealing, and deflection under high wind pressure.
In accordance with Ontario Building Code (OBC) SB-12 energy efficiency requirements and NAFS-08/11 (North American Fenestration Standard) guidelines, exterior entry doors installed across Toronto must achieve exceptionally low U-factors, maintain air tightness under severe negative wind pressures, and withstand temperature differentials exceeding 50°C between internal conditioned air (+21°C) and brutal winter ambient exterior temperatures (-30°C).

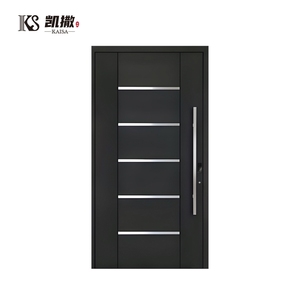

Custom Architectural Entrance & Security Pivot Door Systems
Explore our export-certified product lines custom-manufactured to site drawings with thermal break profiles and high-security locking.
Application Scenarios Across Greater Toronto Neighborhoods
Customizing structural engineering, acoustic dampening, and thermal efficiency for specific Toronto architectural typologies.
Bridle Path & Forest Hill Modern Mansions
Oversized 12ft-tall aluminum pivot entrance sashes paired with heavy-duty cast steel armored interiors. Featuring quad-sealed PA66 thermal breaks and low-iron SGP laminated security glazing designed to maintain thermal efficiency during sub-zero Ontario winters while offering maximum forced-entry protection.
Yorkville & Downtown Commercial Flagships
High-traffic commercial pivot doors integrated with concealed hydraulic floor springs, automatic drop-down bottom weather seals, and ADA-compliant low-profile thermal thresholds. Designed for smooth heavy-duty performance under continuous daily foot traffic.
Oakville & Mississauga Lakefront Estates
Exposed waterfront residences require marine-grade PVDF (Kynar 500) surface treatments to resist moisture corrosion and salt air degradation. Engineered with high design pressure (DP70+) to withstand severe wind-driven rain off Lake Ontario.
Lawrence Park & Annex Infill Rebuilds
Custom slim-sightline modern pivot front doors featuring wood-aluminum hybrid construction. The exterior utilizes weather-resistant anodized aluminum, while the interior warmth is provided by premium finished solid wood or architectural steel veneers.

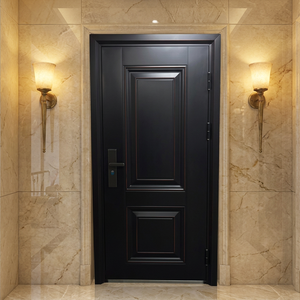

High-Security Armored Urban Residences
Multi-layer bulletproof and explosion-resistant pivot doors utilizing cast steel internal plating, anti-drill multi-point motorized locking bolts, and biometric access integration (fingerprint, keypad, and smart home connectivity).
Severe Winter Cold Barrier Applications
Specially engineered thermal isolators with warm-edge glass spacers and argon-filled double or triple Low-E insulated glass units (IGU) designed specifically to eliminate condensation and frost buildup around door perimeters.
Technical Evolution & Market Trends in Toronto's Pivot Door Sector
Historically, architects in Ontario were hesitant to specify large pivot entry doors due to notorious heat loss, draft leaks, and warping issues associated with traditional single-seal pivot designs. However, modern manufacturing innovations introduced by leading direct-factory producers like Foshan Aluvoy Entry Door Systems Co., Ltd. have completely overcome these limitations through advanced material science and structural engineering.
1. PA66 GF25 Polyamide Thermal Break Integration
Standard aluminum extrusions exhibit high thermal conductivity. Aluvoy custom pivot doors utilize dual and triple structural thermal barriers constructed from PA66 GF25 (25% glass fiber reinforced polyamide). This separates the exterior aluminum skin from the interior sash profile, effectively breaking the thermal bridge. Combined with dense polyurethane foam core insulation, our pivot doors maintain superior interior surface temperatures even during extreme cold snaps in Southern Ontario.
2. Advanced Concealed Hydraulic Floor Springs (FritsJurgens Compatible)
Modern luxury homes demand clean, minimalist aesthetics without bulky surface-mounted closers. Our pivot systems integrate fully concealed hydraulic floor spring systems capable of supporting sashes up to 800 kg (1,760 lbs). Features include:
- 360° Rotational Freedom & 90° Hold-Open Positions: Enabling fluid opening and controlled dampening.
- Active Soft-Close & Backcheck Control: Prevents the door from slamming violently against heavy winter wind gusts.
- Zero Floor Recess Options: Top and bottom pivot hardware mounted completely within the door sash, requiring only a 10mm surface pin plate on the finished floor (ideal for heated floor slabs in Toronto homes).
3. Multi-Point Motorized Locking & Smart Home Interoperability
Traditional single latch locks are insufficient for maintaining a tight seal on a 10-foot-tall door sash under wind pressure. Aluvoy pivot doors incorporate heavy-duty multi-point stainless steel hook locks. When paired with motorized lock actuators, the door automatically pulls itself tight against the weatherstripping upon closing, ensuring an airtight seal while seamlessly connecting to Crestron, Control4, or smartphone access systems.
Pivot Door Performance & Material Technical Specification Matrix
Comparing structural, thermal, and security characteristics across Aluvoy pivot door engineering standards.
| Performance Specification | Aluminum Thermal Break Series | Cast Steel Armored Security Series | Wood-Aluminum Hybrid Series |
|---|---|---|---|
| Thermal Transmittance (U-Factor) | 0.18 - 0.24 BTU/h·ft²·°F (1.02 - 1.36 W/m²K) | 0.22 - 0.28 BTU/h·ft²·°F (1.25 - 1.59 W/m²K) | 0.16 - 0.21 BTU/h·ft²·°F (0.91 - 1.19 W/m²K) |
| Maximum Sash Capacity | 500 kg (1,100 lbs) | 800 kg (1,760 lbs) | 400 kg (880 lbs) |
| Air Infiltration (ASTM E283) | < 0.1 cma/ft² (Passes OBC SB-12) | < 0.12 cma/ft² (Passes OBC SB-12) | < 0.08 cma/ft² (Exceeds Standard) |
| Water Resistance (ASTM E331) | 15.0 psf (720 Pa) | 12.5 psf (600 Pa) | 15.0 psf (720 Pa) |
| Structural Wind Load (DP Rating) | DP 70 - DP 90 | DP 80 - DP 100+ | DP 65 - DP 80 |
| Glass Specification | Triple Glazed Low-E + Argon (Warm Edge) | Laminated Bulletproof / Armored Glass | Triple Glazed Tempered Low-E |
| Surface Finish Coating | PVDF Kynar 500 / Anodized Architectural | Cast Armor Powder Coating / Copper Patina | PVDF Exterior / Hand-Rubbed Interior Hardwood |
Why Toronto Architects & Importers Source Direct from Aluvoy Factory
Foshan Aluvoy Entry Door Systems Co., Ltd. (Aluvoy Entry Door) operates a modern 20,000+ square meter manufacturing facility with two specialized production lines dedicated to export window and door systems. With over 20 years of direct manufacturing expertise and a team of 150+ skilled technicians, we eliminate middleman markups while providing custom shop drawing engineering for overseas projects.
Inside Our Precision Manufacturing Facility
Our workshop employs automated CNC machining centers, precision corner-crimping equipment, and strict in-house quality control testing for air, water, and structural performance before export shipping.
Frequently Asked Questions by Toronto Builders & Architects
Detailed technical answers addressing Ontario building regulations, cold-climate thermal performance, shipping logistics, and structural preparation.
How do Aluvoy custom pivot doors perform during Toronto's sub-zero winter freeze-thaw cycles?
Aluvoy pivot doors are custom-engineered for harsh northern climates. We utilize multi-chambered aluminum profiles fitted with PA66 GF25 glass-fiber reinforced polyamide thermal break struts. This structural barrier isolates internal profiles from freezing exterior temperatures. Furthermore, our doors incorporate continuous dual EPDM perimeter weatherstripping, automatic drop-down bottom seal mechanisms, and triple-pane argon-filled Low-E glass units, eliminating draft leakage, thermal bridging, and interior condensation even when exterior temperatures drop to -30°C.
Do Aluvoy custom pivot entry doors comply with the Ontario Building Code (OBC) and NAFS standards?
Yes. Our export products are engineered to comply with North American Fenestration Standard (NAFS-08/11) and Ontario Building Code (OBC) SB-12 thermal efficiency performance specifications. Our factory carries international quality certifications including NFRC (North American Fenestration Rating Council) testing standards and AS2047 accreditation via SAI Global. Before production, our engineering department generates detailed shop drawings displaying thermal break calculations, frame profiles, and glass specifications to submit to your local Toronto building department for permit sign-off.
What structural rough opening preparation is required for a 500kg+ custom pivot door sash?
Because custom pivot doors transfer their vertical dead weight directly to the floor rather than the vertical wall studs, the subfloor must be solid concrete or structurally reinforced steel/engineered timber capable of supporting concentrated loads up to 800 kg. The top header must be structurally engineered (LVL beam or steel lintel) to handle horizontal wind loads without sagging. Aluvoy provides exact anchor location drawings, structural reaction load data, and floor spindle drilling templates to your structural engineer prior to manufacturing.
What is the typical lead time and freight logistics for shipping direct to job sites in Toronto or the GTA?
Once CAD shop drawings are approved, production takes approximately 25 to 35 days. Shipping from our factory in Foshan to the Port of Montreal or Toronto container terminal via ocean freight typically requires 20 to 28 days. In total, clients should budget approximately 8 to 10 weeks from drawing sign-off to site delivery. We offer full DDP (Delivered Duty Paid) freight service, taking care of customs clearance, import duties, GST/HST filing, and direct flatbed delivery to your job site in Toronto, Mississauga, Oakville, or surrounding regions.
Can Aluvoy pivot doors integrate with Canadian smart home access systems and motorized locking?
Absolutley. We supply integrated European multi-point motorized lock sets (such as Siegenia or GU) that interface with biometric fingerprint readers, wall keypads, electronic fobs, or smart home automation hubs including Control4, Crestron, Lutron, and Apple HomeKit. When closed, the motorized drive engages multiple heavy-duty steel hooks into the frame, providing high-level security while pulling the sash firmly against the perimeter weather seals.
How does the bottom weather seal work on floor-flush pivot doors?
To achieve a seamless transition between interior flooring and exterior paving, we utilize dynamic concealed drop-down acoustic and weather seals. As the door sash closes, an actuator pin on the frame side triggers a spring-loaded neoprene gasket to drop down flush against the threshold, forming an airtight barrier. When the door opens, the seal instantly retracts into the bottom aluminum rail, preventing drag or damage to finished flooring.
What surface finishes are recommended for high durability in Southern Ontario weather?
For exterior aluminum profiles in Toronto, we strongly recommend PVDF (Fluorocarbon / Kynar 500) coating or premium architectural anodizing. PVDF coatings offer superior color retention, UV resistance, and protection against salt corrosion caused by winter road de-icing salts. We offer custom RAL color matching, textured metallic finishes, and real wood-grain powder coat transfers.
What warranty coverage is included with Aluvoy factory direct orders?
Aluvoy backs all aluminum pivot door systems with a 10-year comprehensive structural warranty. This includes 10-year coverage on aluminum extrusions, finish integrity against blistering or flaking, and insulated glass units against seal failure. Operating hardware (hydraulic floor pivots and multi-point locks) carries a 5 to 10-year manufacturer warranty depending on the chosen hardware tier.
What is the engineering workflow for ordering custom-sized pivot doors direct from Aluvoy?
Our process is structured for seamless overseas collaboration:
1. Initial Quotation & Project Review: Submit architectural drawings or rough opening dimensions.
2. CAD Shop Drawing Preparation: Our engineering team drafts detailed CAD elevation and section drawings for review.
3. Material & Finish Sign-off: Confirm glass specs, hardware selection, and RAL powder color.
4. Precision Factory Production: CNC cutting, thermal assembly, corner crimping, and pre-rigging hardware.
5. Factory Testing & Pre-assembly: Trial assembly and video inspection sent to client before packing.
6. Export Packaging & Delivery: Packed in reinforced fully-enclosed wooden crates for containerized ocean transport.
Are custom glass sidelights and transom panels available to match the pivot door?
Yes. We engineer complete entrance portal systems including custom structural sidelights, transom windows, and integrated curtain wall framing. All glass sidelights share identical thermal profiles and matching glass coatings (Low-E tint, reflective, or frosted privacy glass) as the main pivot sash for a uniform exterior appearance.
Ready to Engineer a Grand Entryway for Your Toronto Project?
Send your architectural drawings, window schedules, or rough opening dimensions directly to our factory export team for a quick quote and technical evaluation.
